SureFIRE Extinguisher is the most cost effective alternative to conventional extinguishing systems - No piping, pressure cylinders, special valves and supports are required thus reducing installation time and costs considerably.
-
SureFIRE Aerosol Extinguisher works well on all classes of fire, namely, solid combustible materials, flammable liquids, gases, and electrical equipment - Class A, B, C & E.
-
SureFIRE Aerosol technology is tested and certified by world's most renowned and respected authorities such as UL, ULC, CSIRO, ECB among many others, and is manufactured to ISO standards.
-
SureFIRE Aerosol is perfect where water or chemical agents are impractical - SureFIRE does not produce any aggressive acids nor depletes oxygen, nor causes any damage to delicate equipments, engines or electrical components.
-
SureFIRE Aerosol requires zero maintenance with up to 10 years' service life, without the need for pressure testing, weighing, pressure/leak detection etc. as in conventional systems.
What Is SureFIRE
A revolution is taking place in Fire Suppression. Developed from solid rocket fuel technology, SureFIRE Condensed Aerosol Fire Extinguishing Systems, are ecologically friendly and the most cost effective alternative to Halon, Inert Gases, Halocarbons and Chemical Powder Fire Extinguishing. They are intended for extinguishing fires of solid combustible materials, flammable liquids, gases and electrical equipment - Class A, B, C & E.
Every SureFIRE generator consists of a body (steel or stainless steel), an aerosol forming compound (solid), a chemical coolant (solid) and a system of activation (thermal or electrical or both). The heart of the generator is an aerosol forming compound. The generators are unpressurised.
SureFIRE generators correspond to modern international norms for condensed aerosol generators: ISO 15779:2011 and MSC.1/Circ.1270 (IMO). The underlying aerosol technology is listed for Class A, B, C fires by UL, ULC, CSIRO, ECB, and many others.
The family of SureFIRE generators includes the units with weight of aerosol forming compound from 20 grams to 6300 grams. The extinguishing density of aerosol discharged from SureFIRE generators is about 90 g/m3 for A-Class fires and 75 g/m3 for B-Class fires.
How SureFIRE Works
SureFIRE Condensed Aerosol Fire Suppression System is a new class of fixed fire suppression systems unmatched in the industry. The principle extinguishing action employed by SureFire is unique - a special solid compound within a non-pressurized canister, when electrically or thermally activated, produces aerosol that has an exceptional fire extinguishing characteristics.
The aerosol consists of a mixture of micron-sized dry chemical particles and gas. Micron-sized aerosol particles exhibit gas-like three dimensional qualities that allow the agent to rapidly distribute throughout the enclosure and reach even concealed and shielded locations.
Upon being released into a protected area, homogeneous distribution is achieved in a matter of seconds, attacking the fire both chemically and physically, and extinguishing it almost instantly, while the long suspension time helps to prevent fire from re-ignition.
SureFIRE Aerosol, extinguishes fire by inhibiting the chain chemical reaction in combustion at a molecular level - it removes the flame free radicals and extinguishes fire without depleting oxygen. The advantages of SureFIRE over the competitive products are a wide range of operating temperatures (-50*C...+90*C) and high strength under impact loads and vibration stress.
SureFIRE Benefits
Highest Performance
3 times more effective than Halon - At a maximum design concentration of 100g per m3, aerosol exhibits equal or better extinguishing properties than Halon 1301 at 330g per m3. Aerosol has the lowest extinguishing concentration amongst commercially available agents.
Non-pressurized containers
Non-pressurized canisters are light and safe to transport, and require no additional pipes, nozzles or distribution equipment. They cannot leak or burst or deteriorate, and can be stored for up to 10 years without maintenance.
Spontaneous extinguishing
Aerosol controls and extinguishes fire directly at the source the moment the fire has started.
Cost effectiveness
SureFIRE Aerosol is less expensive compared to most other gaseous systems (Halon replacements) making it more attractive to the end user.
Environmentally friendly
Aerosol has been certified as having 0% Ozone Depleting Potential (ODP) and 0% Global Warming Potential (GWP). It is officially listed by the US Environmental Protection Authority under its Halon replacement 'Significant New Alternatives Program' (SNAP).
Non-toxic & Non-corrosive
No harmful effect on humans or property - Unlike some Halon alternatives, aerosol does not produce any aggressive acids such as hydrogen fluoride or chlorine or bromide nor depletes oxygen to suppress fire. Also, aerosol causes no damage to delicate equipment, engines or electrical components.
Tremendous space saving
Compact & Weight Saving - the space required is only a fraction of the space needed for other competing systems(1/40th of inert gases and 1/10th of other currently available systems).
Fast install & recommission
Canisters are electrically (or automatically thermally) activated. Simple wiring and plug-in connectors reduce installation times. If discharged, new canisters may be re-installed in minutes affording minimal downtime.
Simple uncomplicated design
Design calculations are based on uncomplicated parameters. No piping, pressure cylinders, special supports and valves are required thus reducing installation time and costs considerably.
Zero maintenance
Zero maintenance with up to 10 years' service life, without the need for pressure testing, weighing, pressure/leak detection etc. as in conventional systems.
International Certifications
Tested and certified by various certification bodies worldwide. Manufactured to ISO 9001:2000 standards and listed for Class A, B, C fires by UL, ULC, CSIRO, ECB, and many others.
Other Benefits
Can be added to existing protection installations. Perfect where water or chemical agents are impractical. Can be installed when normal systems are out of service for maintenance, repair, or loss of water pressure. It is also electrically non-conductive.
Portfolio

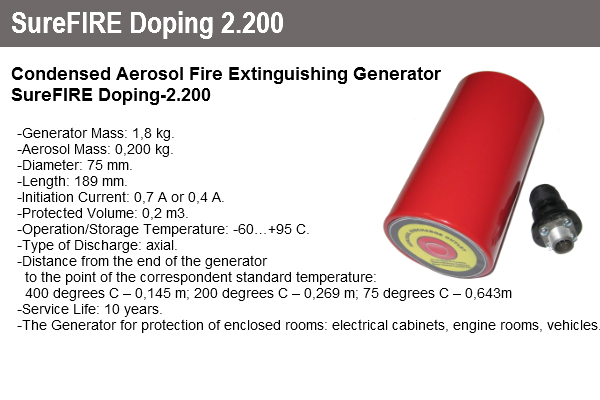

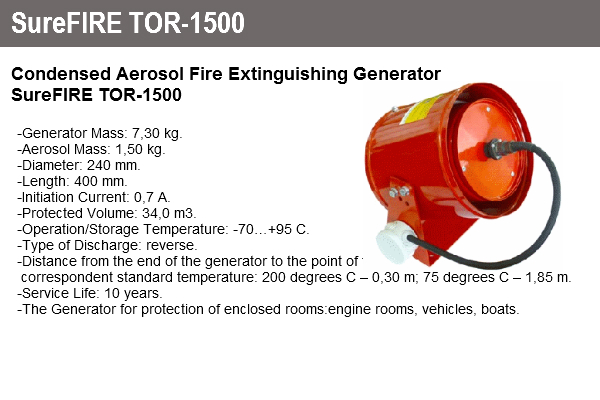

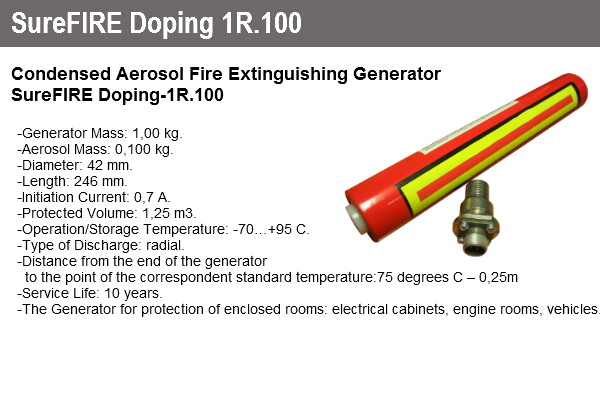

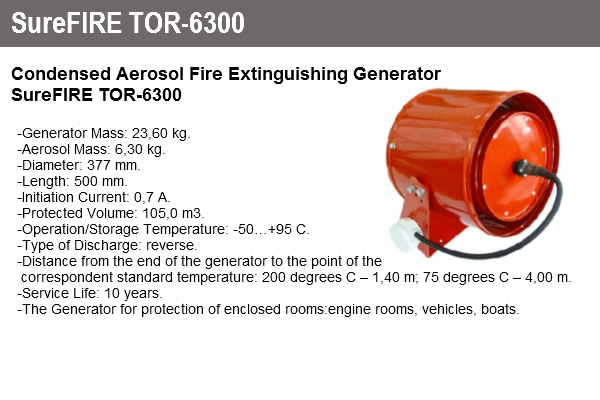

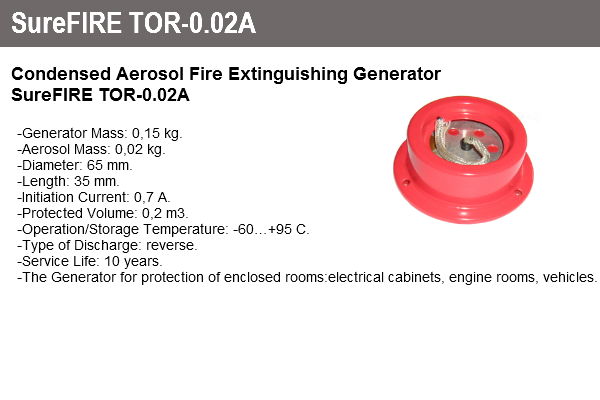

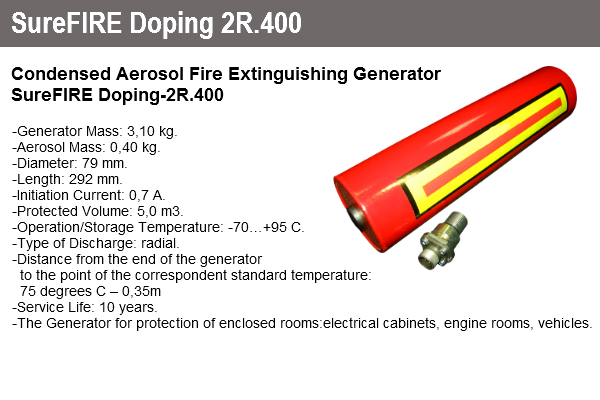

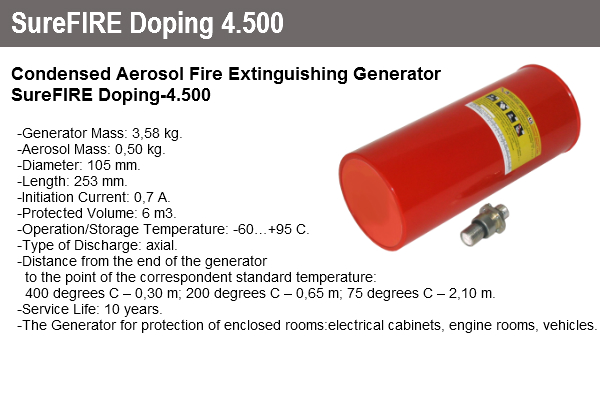

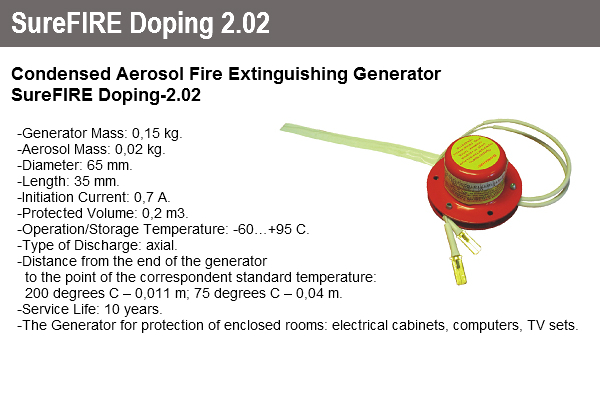

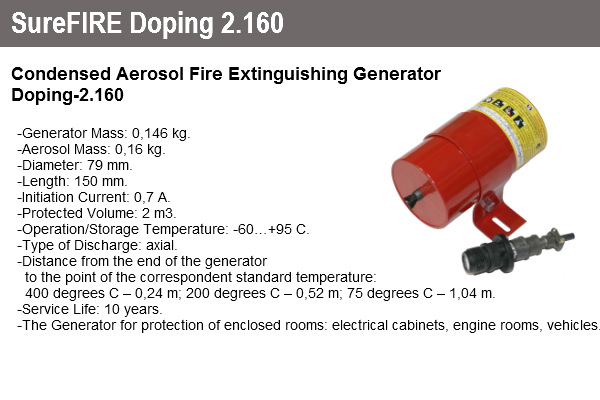

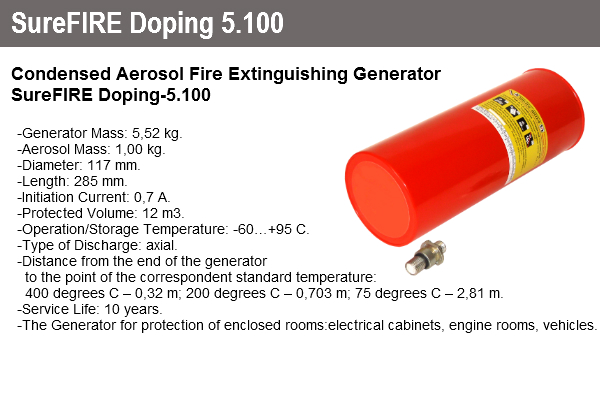

SureFIRE DOPING and TOR
"SureFIRE DOPING"s and "SureFIRE TOR"s are fast acting condensed aerosol generators intended for extinguishing fires of solid combustible materials, flammable liquids, gases and electrical equipment - Class A, B, C & E.
"SureFIRE DOPING"s and "SureFIRE TOR"s condensed aerosol generators come in three types of design: axial-discharge, radial-discharge and reverse-discharge. Radial-discharge generators can be used in small cabinets, reverse-discharge generators are characterized by low aerosol temperature and compact dimensions.
The family of "SureFIRE DOPING" and "SureFIRE TOR" generators includes the units with weight of aerosol forming compound from 20 grams to 6300 grams. The range of "SureFIRE DOPING"s and "SureFIRE TOR"s make possible fire protection of a lot of different objects from small to big under high economic efficiency.

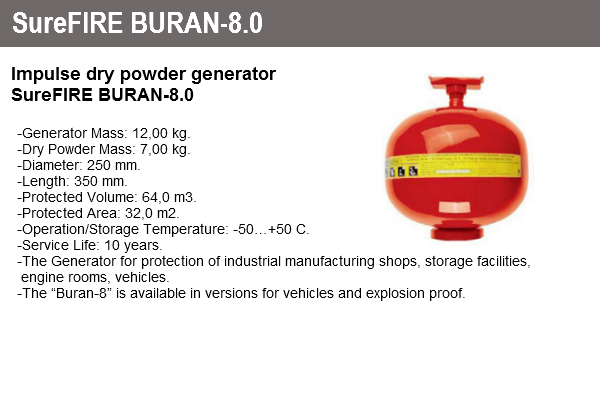

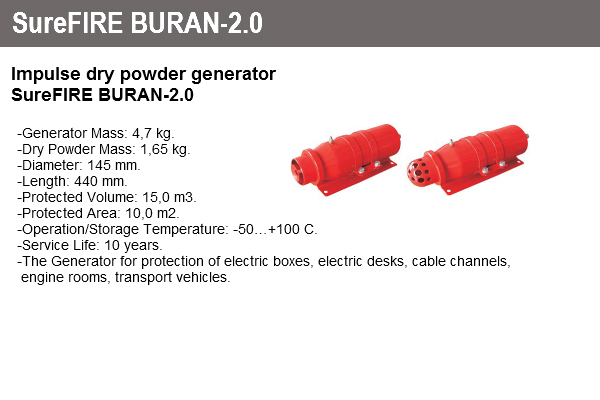

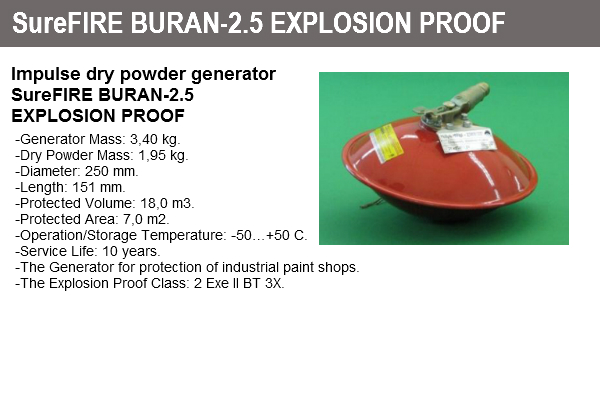

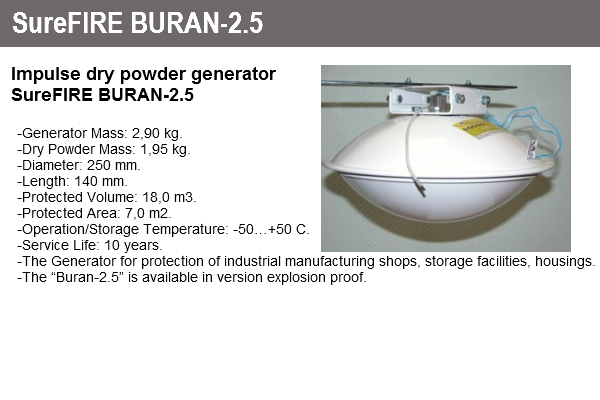

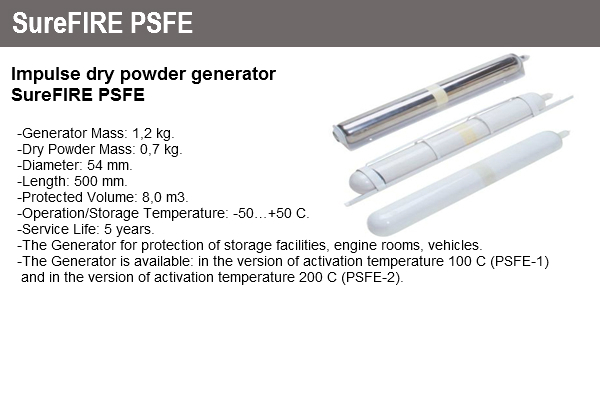

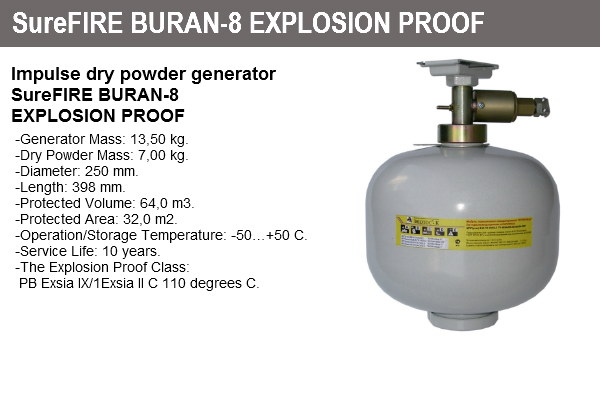

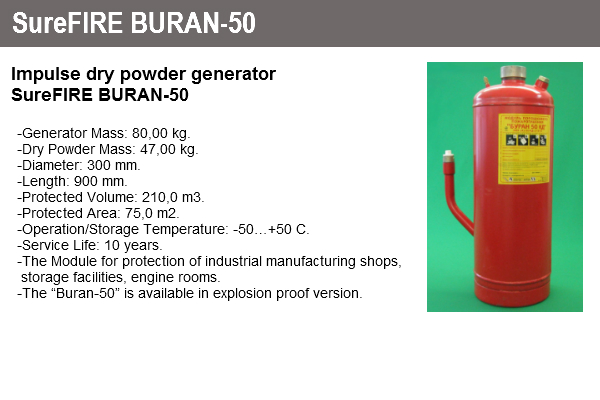

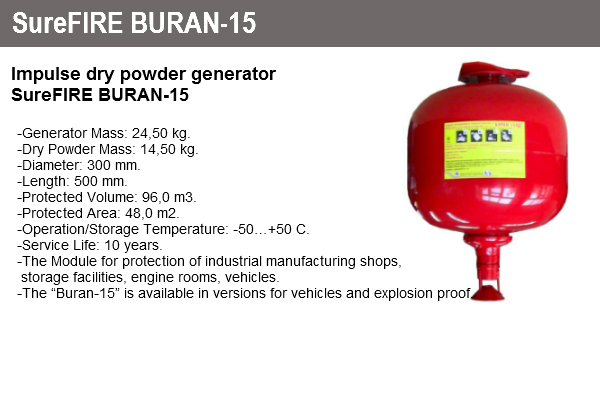

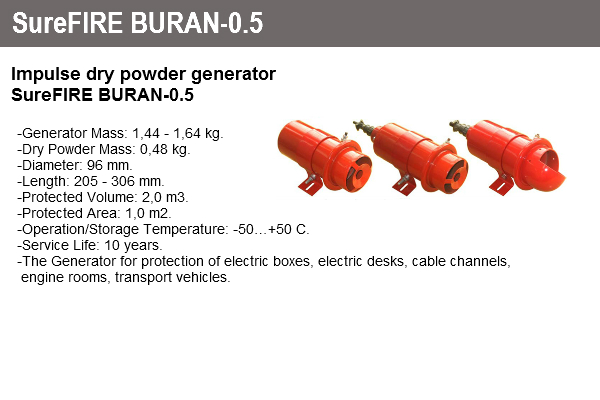

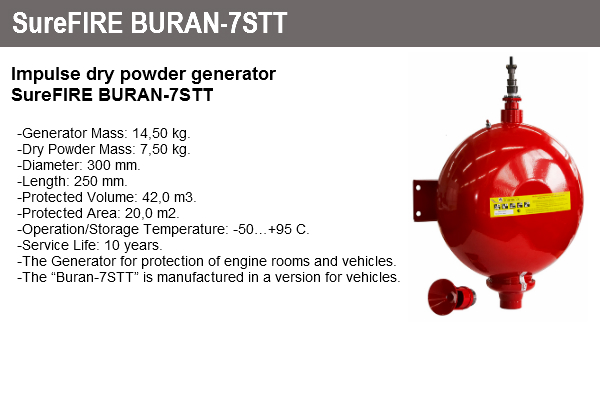

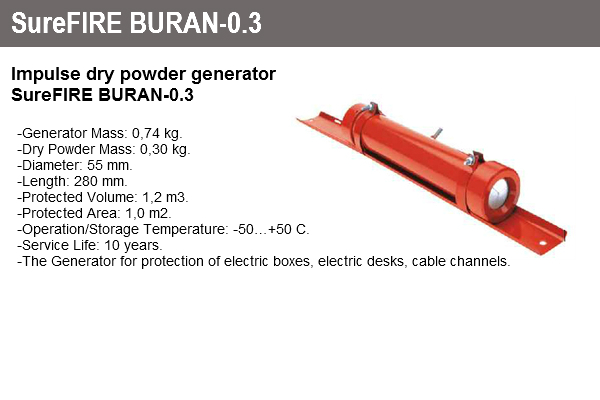

SureFIRE BURAN
"SureFIRE BURAN"s are impulse, fast acting dry powder suppression systems intended for extinguishing fires of solid combustible materials, flammable liquids, gases and electrical equipment - Class A, B, C & E.
The family of "SureFIRE BURAN"s includes about 20 units with the weights of dry powder from 300 grams to 50 kg. They are hermetically sealed, unpressurised, strong and lightweight units easy for installation and transportation. The latest units can have a combined activation system - electrical and thermal activation in a single device.
Industries We Serve!
SureFIRE offers a choice of applications - Total Flooding (protection of the entire premises) or Direct-To-Source (protection of individual enclosures within the premises). In the case of a bank of electrical cabinets located in a large room, such individual protection of each cabinet is more effective both fire wise (targets fire at its source and therefore extinguishes fire at a very early stage) and cost wise (a fire incident requires a fire system replacement in an affected cabinet only, not in the entire premises).
Some of the critical areas in different industries protected by SureFIRE are:
Power Distribution
Protection of transformers, sub stations, switchgear rooms, cable tunnels, electric cabinets, power distribution plants, turbine generators, etc.
IT & Telecom

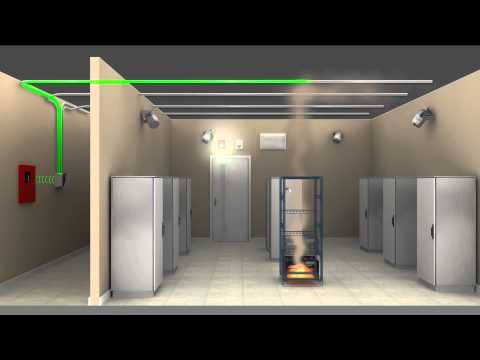

Protection of base stations, switching cabins / cabinets, server rooms, server farms, data storage, data processing areas, ISP data centers, etc.
Marine
Protection of engine rooms, machinery spaces, cargo holds, power boats, super yachts, sail boats, barges, tow boats and control shelters.
Construction
Protection of attics, garages, paint lockers, machinery and computer rooms, warehouses, offices, temporary storages, raised floors, etc.
Mining, Oil & Gas
Protection of mining equipment, control rooms, switchgear rooms, cable tunnels, pump-stations, pump rooms, machinery spaces, electric cabinets, cogeneration and electrical distribution systems, petrochemical and pipeline systems, etc.
Transport

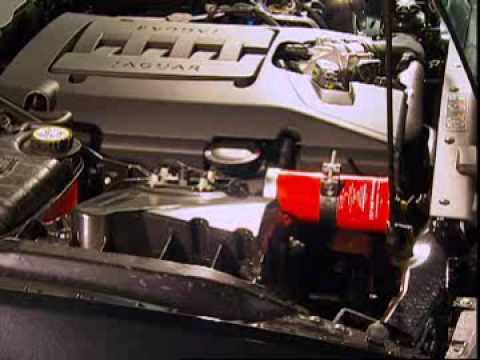

Protection of engine compartment of passenger cars, buses, heavy transport vehicles, mining vehicles, cranes, trailers, motorhomes, emergency vehicles, trains, construction equipment, timber harvesters, loaders and mining drags, road paving equipment, etc.
Factories
Protection of machinery and equipment in factories, inside CNC grinding and turning machines, power cabinets, generator rooms, power switching cabinets, resistor banks, etc.
Military
Protection of cargo bay, engine and engine dry bay military aircraft, armoured personnel carriers, military mobile base containers, etc.
Aviation
Protection of maintenance shops, containers, cargo bays, helicopters, general aviation, commercial airlines, ground support equipment, etc.
Other Applications
Protection of museums, historic UNESCO buildings, wind turbines, hotel chains, retail & shopping mall networks, schools and hospitals, police and fire brigade, etc.
About Us
SACAYA Technologies Pvt Ltd, India (A unit of SACAYA Corp Inc., USA) is the company behind SureFIRE Aerosol Technology. SACAYA Technologies, India offers an extensive expertise in turnkey Building Security / Fire Safety Solutions. Our highly experienced staff at the Bangalore facility provide a full range of services from system design, installation, and maintenance, to prompt after-sales local support.
Why Choose Us
By collaborating with our organization for your Fire Safety requirements, you will be partnering with a professional team of talented engineers and technicians who have undergone extensive training on Aerosol family of Extinguishers. Our team has the requisite ability, experience, and drive to cost effectively design, deploy, and support your fire safety needs whether you are a commercial, residential, industrial, or a governmental establishment.
Our Mission: Sacaya's mission is to be the technology partner of choice for its customers in bringing cutting edge products and solutions to the marketplace. We aim to achieve this without compromising quality and maintaining low costs through high-end research and process improvement.
Our Clients
SACAYA Technologies has served hundreds of global customers over the last decade. Our Building Security & Fire Safety Solutions are designed to meet the needs of businesses across all sectors of commerce, industry and government. We do not take a "one size fits all" approach; our team can design a solution to perfectly match the needs of a particular client, or we can provide off the shelf products and services if these are more suitable.
We are highly flexible in what we do, and this allows us to work for businesses of every shape and size. Our clients range from small and medium size enterprises to some of the biggest and most prominent employers operating today, including major government departments and global private sector brands.
But don't take just our word for it; contact us to get the relevant client references in your vertical, so that you can speak directly to find out what our clients say about us.

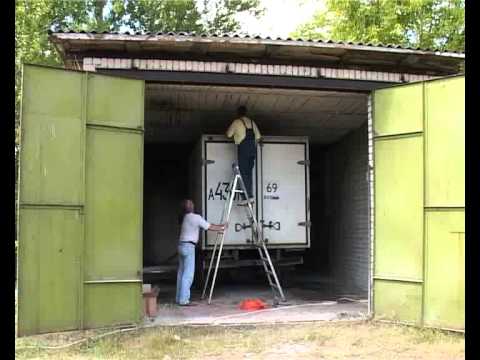

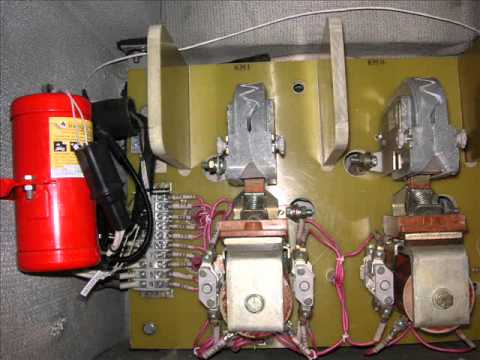

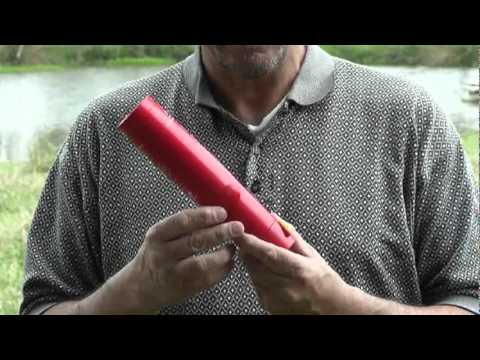

Demonstration Videos

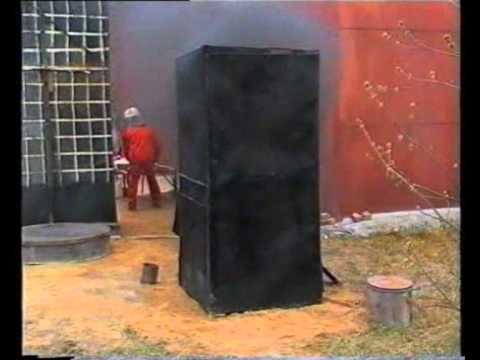

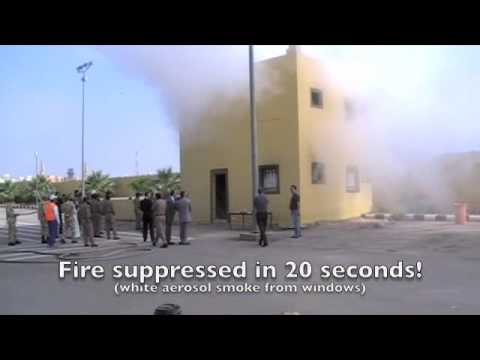

Some of the popular testing / demonstration videos of Condensed Aerosol Fire Suppression Technology follows:
SureFIRE Epotos Demos
We at SureFIRE Automatic Extinguishers carry all of the above demonstrated make / models. Contact us to discuss how we can help you with your fire safety needs.
